Short Description

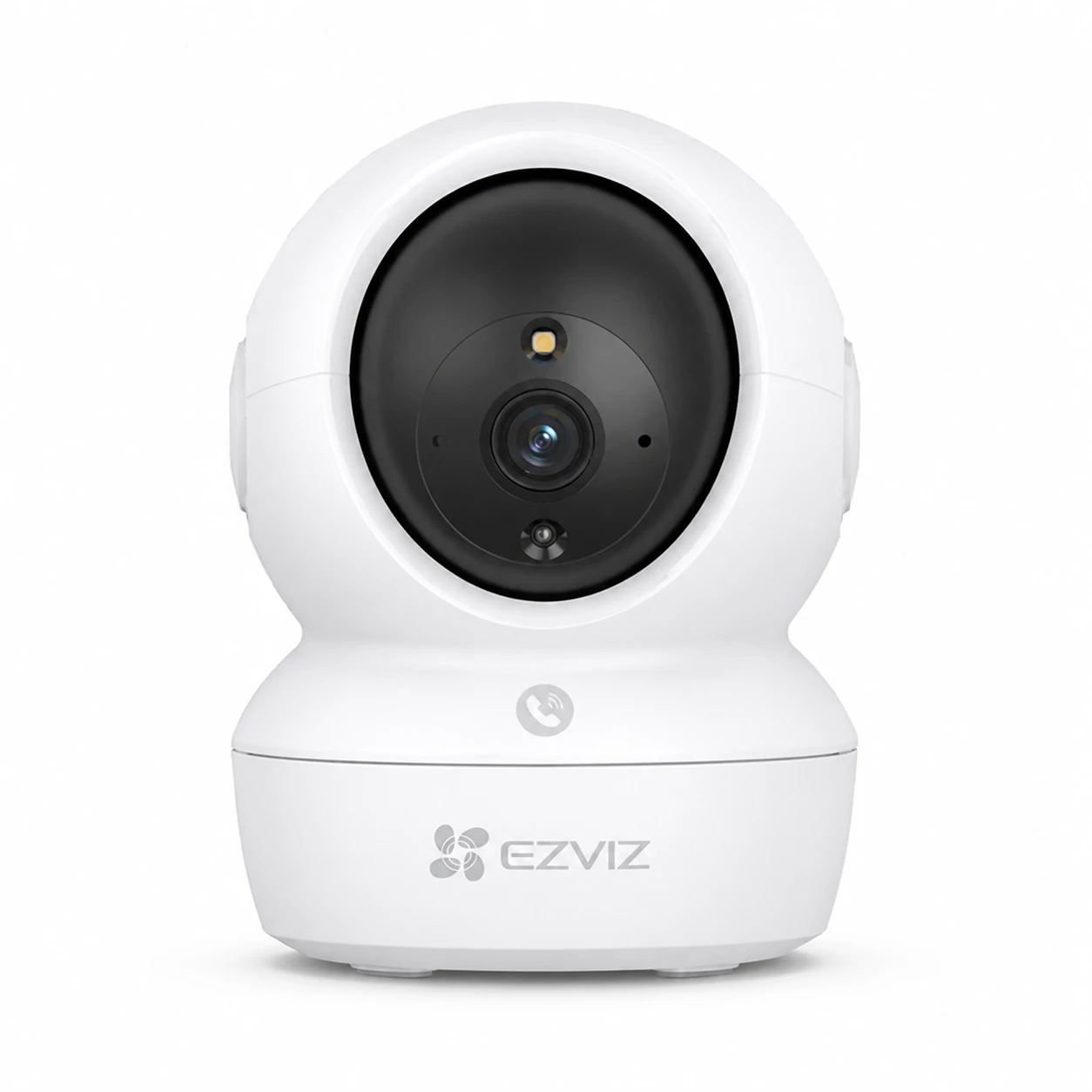

The EZVIZ CS-H6c Pro is an advanced indoor smart security camera featuring 3MP 2K video resolution, panoramic pan and tilt coverage, smart human shape detection, auto-tracking, customizable patrol mode, smart color night vision, loud noise detection, and two-way calling with a touch button.

It supports both 2.4GHz WiFi and wired Ethernet connectivity, allowing users to monitor their home, office, shop, children, elderly family members, or pets remotely through the EZVIZ mobile app.

Key Features

1. 3MP 2K video resolution at 2304 × 1296
2. 1/2.7-inch Progressive Scan CMOS sensor
3. 4mm lens with F1.6 aperture
4. 340° horizontal and 55° vertical rotation
5. Panoramic indoor monitoring
6. Customizable auto patrol mode
7. Smart human shape detection
8. Human motion auto-tracking
9. Motion detection alerts
10. Loud noise detection
11. Smart color night vision up to 5 meters
12. Infrared night vision up to 10 meters
13. Two-way audio communication
14. One-touch calling button
15. Privacy sleep mode
16. H.264 and H.265 video compression
17. MicroSD card support up to 512GB
18. EZVIZ CloudPlay storage support
19. 2.4GHz WiFi connectivity
20. RJ45 Ethernet port
21. USB Type-C power interface
22. Remote monitoring through the EZVIZ app
23. 2-year warranty

Product Overview

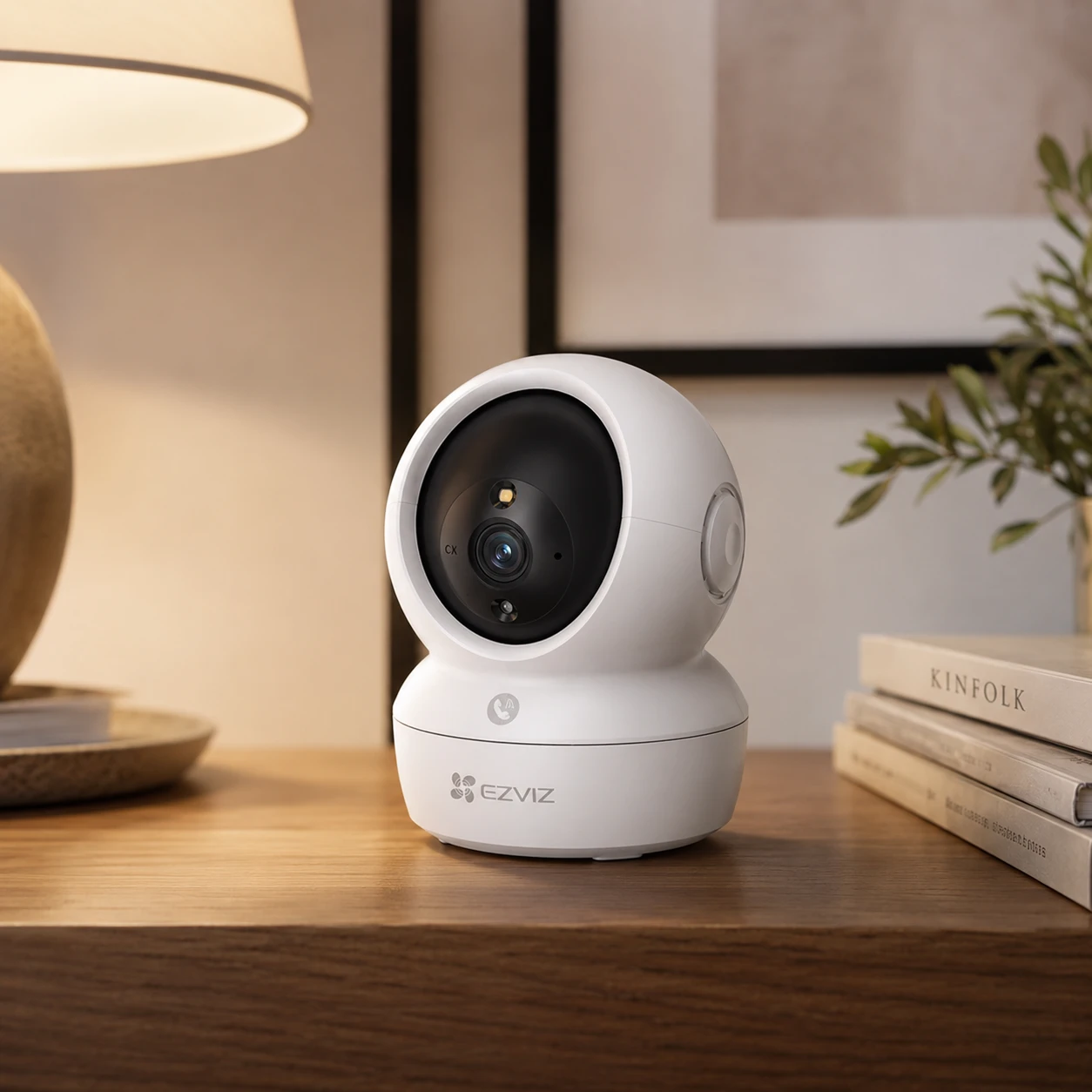

The EZVIZ CS-H6c Pro 3MP is a feature-rich indoor smart security camera designed for complete room monitoring. Its 2K resolution captures clear and detailed footage, while the motorized pan and tilt system allows the camera to monitor a much wider area than a conventional fixed-view camera.

The H6c Pro intelligently detects human movement and can rotate automatically to follow a person’s activity. Its customizable patrol feature enables the camera to scan a room automatically or move between selected monitoring points.

With smart color night vision, loud noise detection, two-way communication, and a touch call button, the camera is particularly suitable for family monitoring, child care, elderly care, pet monitoring, home security, and office surveillance.

Clear 3MP 2K Video Quality

The EZVIZ H6c Pro uses a 1/2.7-inch Progressive Scan CMOS image sensor and records video at a maximum resolution of 2304 × 1296.

Its 3MP 2K resolution provides greater image detail than a standard 1080p camera, helping users identify faces, movements, and important objects more clearly.

The camera supports self-adaptive frame rate adjustment during network transmission, allowing it to maintain stable video performance according to the available connection quality.

Wide Pan and Tilt Coverage

The motorized camera head provides:

1. 340° horizontal rotation
2. 55° vertical rotation
3. Panoramic room coverage
4. Remote directional control through the EZVIZ app

This wide viewing range helps reduce blind spots and makes the camera suitable for monitoring large indoor areas from a single installation point.

Customizable Patrol Mode

The H6c Pro can automatically patrol the monitored area using its built-in pan and tilt mechanism.

Users can select:

1. Overall horizontal patrol
2. Customized patrol routes
3. Up to four preset monitoring points

The camera can move between the selected positions automatically, helping ensure that important parts of a room are checked regularly.

Smart Human Shape Detection

The camera can distinguish human-shaped movement from other common indoor motion.

This helps reduce unnecessary alerts caused by:

1. Moving curtains
2. Changes in lighting
3. Small objects
4. Other non-human movement

When a person is detected, the camera can send a notification through the EZVIZ mobile app.

Human Motion Auto-Tracking

The H6c Pro can automatically rotate and follow a moving person after human activity is detected.

This feature allows the camera to keep the person within its viewing area for longer, making it useful for:

1. Monitoring children
2. Watching elderly family members
3. Tracking movement inside an office
4. Monitoring shops and reception areas
5. Observing pets and household activities

Smart Color Night Vision

The EZVIZ H6c Pro provides smart color night vision at distances of up to approximately 5 meters.

Its built-in lighting system helps produce more colorful and detailed nighttime footage than conventional black-and-white infrared monitoring in supported conditions.

Infrared Night Vision up to 10 Meters

The camera also includes infrared night vision for monitoring completely dark environments.

It can capture nighttime footage from distances of up to 10 meters. Its automatic IR-cut filter switches between daytime and nighttime imaging as lighting conditions change.

Loud Noise Detection

The H6c Pro can detect sudden or unusually loud sounds inside the monitored room.

This feature can help notify users about situations such as:

1. A crying baby
2. Breaking objects
3. Unexpected indoor noise
4. Calls for assistance
5. Unusual activity when nobody is expected

Notifications can be delivered through the EZVIZ app, depending on the selected camera settings.

Two-Way Audio Communication

The camera includes a built-in microphone and speaker for real-time two-way communication.

Using the EZVIZ app, users can:

1. Hear audio from the monitored location
2. Speak with family members
3. Communicate with office staff
4. Talk to children
5. Reassure elderly family members
6. Warn unauthorized visitors
7. Interact with pets remotely

One-Touch Calling Button

The H6c Pro features a dedicated touch call button on the camera.

A family member near the device can press the button to initiate a call through the EZVIZ system. This is especially useful for:

1. Elderly family members
2. Children
3. Household assistants
4. Family communication
5. Emergency contact situations

Privacy Sleep Mode

Privacy sleep mode allows users to temporarily stop active monitoring when surveillance is not required.

This feature provides greater privacy for bedrooms, living rooms, family spaces, and other indoor environments.

Sleep mode can be managed through the EZVIZ mobile app.

H.265 Video Compression

The camera supports both H.264 and H.265 video compression.

H.265 technology helps:

1. Reduce storage usage
2. Reduce network bandwidth consumption
3. Maintain good video quality
4. Store more recorded footage on the memory card

Actual storage duration depends on recording settings, activity levels, resolution, and memory card capacity.

MicroSD Card Storage

The H6c Pro includes a MicroSD card slot and supports memory cards with capacities of up to 512GB.

Local storage allows the camera to save recorded footage without requiring a separate DVR or NVR.

The MicroSD card is normally sold separately.

EZVIZ CloudPlay Storage

The camera also supports EZVIZ CloudPlay in eligible regions.

Cloud storage availability, subscription charges, recording duration, and supported plans may vary according to location.

WiFi and Wired Network Connectivity

The camera supports 2.4GHz WiFi using IEEE 802.11b/g/n standards.

It also includes an RJ45 Ethernet port with 10/100Mbps self-adaptive connectivity.

Users can therefore connect the camera using:

1. 2.4GHz wireless WiFi
2. Wired Ethernet network connection

A wired connection may provide improved stability in locations with weak or congested WiFi signals.

Remote Monitoring with the EZVIZ App

The EZVIZ mobile app allows users to access the camera remotely through an internet connection.

Available functions may include:

1. Live video monitoring
2. Pan and tilt control
3. Two-way audio
4. Motion notifications
5. Human detection alerts
6. Auto-tracking control
7. Patrol mode settings
8. Recorded video playback
9. Privacy sleep mode
10. Camera configuration
11. Multiple-device management

Suitable Applications

The EZVIZ H6c Pro is suitable for:

1. Home security
2. Apartment monitoring
3. Office surveillance
4. Shop and showroom monitoring
5. Reception monitoring
6. Child and baby monitoring
7. Elderly care monitoring
8. Pet monitoring
9. Small warehouse monitoring
10. Indoor counter surveillance
11. Remote family communication

Technical Specifications

General Information

Camera

Pan and Tilt

Video

Smart Detection

Night Vision

Audio and Calling

Storage

Wireless Network

Wired Network

Power

Operating Conditions

Physical Specifications

Warranty Information

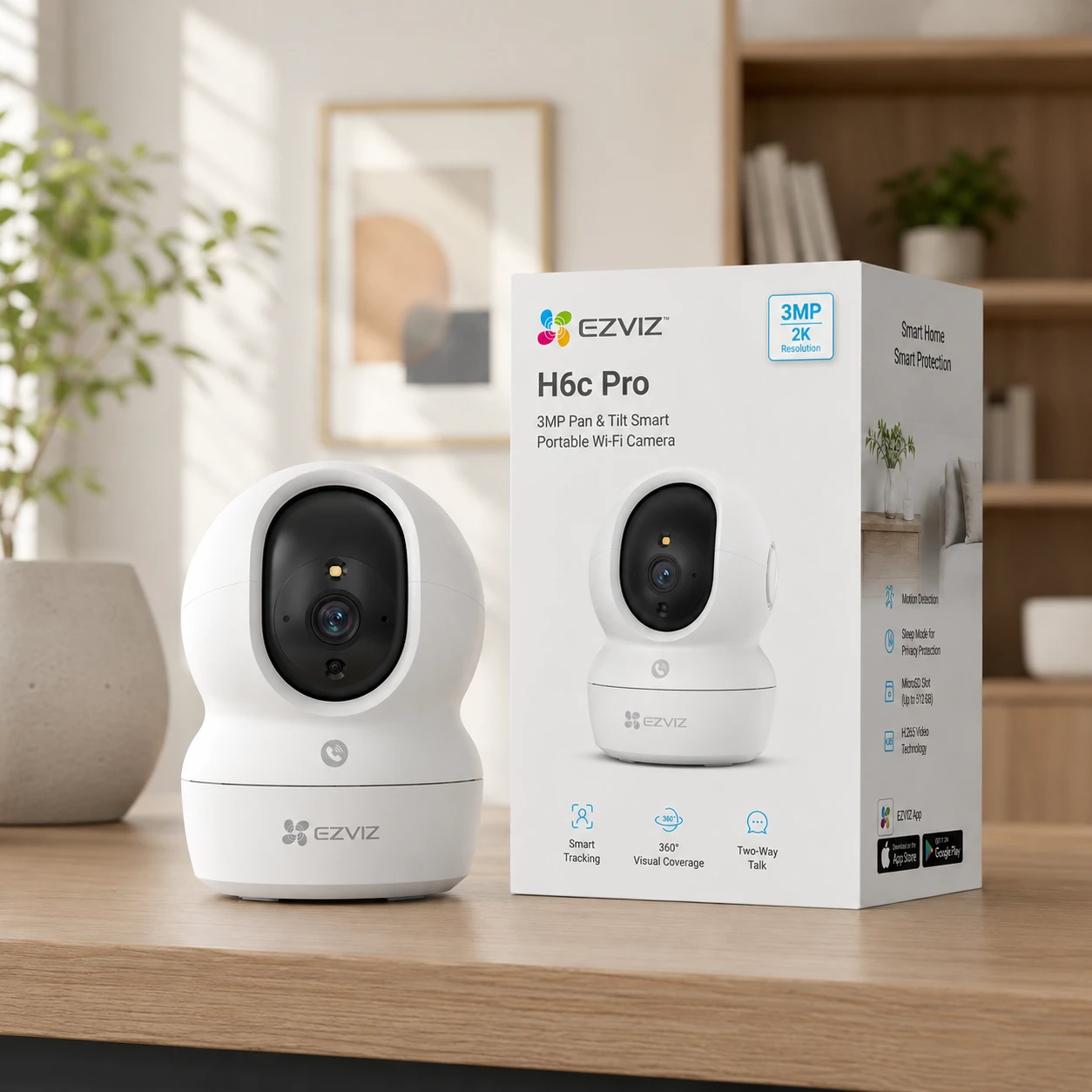

Package Contents

The retail package may include:

1. EZVIZ H6c Pro Camera
2. Power Adapter
3. USB Type-C Power Cable
4. Mounting Base
5. Mounting Screw Kit
6. Drilling Template
7. Regulatory Information
8. Quick Start Guide

Package contents may vary according to the distributor, market, or production batch.

Why Choose the EZVIZ H6c Pro?

The EZVIZ H6c Pro provides more than basic indoor video monitoring. Its combination of 3MP 2K resolution, motorized pan and tilt movement, human detection, automatic tracking, customizable patrol mode, color night vision, loud noise detection, and one-touch calling makes it a complete smart monitoring solution.

It is an excellent option for users who need one camera for both indoor security and family communication.

Important Notes

1. This camera is designed primarily for indoor use.
2. It supports 2.4GHz WiFi and does not support 5GHz WiFi.
3. A MicroSD card is not normally included and must be purchased separately.
4. EZVIZ CloudPlay availability and subscription plans vary by region.
5. Color night vision performance depends on distance, lighting, and installation conditions.
6. Some app features may require updated firmware or the latest EZVIZ app version.
7. Product specifications, packaging, and accessories may change without prior notice.
